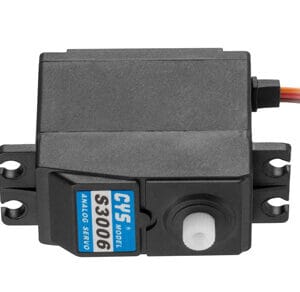

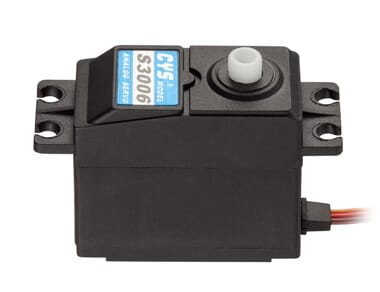

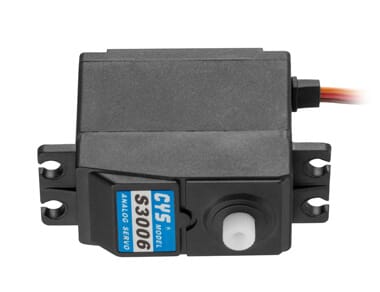

Item NO.: CYS-S3006 6Kg plastic gear servo
Description : 6Kg plastic gear serov for rc boat, rc car
Size : 40.5*20*38MM
Torque : 5.5Kg.cm ~ 6.0Kg.cm
Speed : 0.13sec ~ 0.11sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 40± 1 g
| Type | Analog (digital is optional if required) |
|---|---|
| Weight | 40± 1 g /1.41oz |
| Size | 40*20*38.5mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 6.0~7.4Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.14sec/60° at no load |
| Operating Speed (7.4V) | 0.12sec/60° at no load |
| Stall Torque (6.0V) | 5.5kg.cm |
| Stall Torque (7.4V) | 6.0kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and 200mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 300mA no load operating |
| Stall Current | 1.5A/1.8A |
| Dead Band Width | 4usec |
| Motor Type | Iron Motor |
| Bearing Type | Dual Ball Bearing*2 |
| Horn gear spline | 25T |
| Gear Type | Plastic |
| Connector Wire Length | 300mm±5mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
