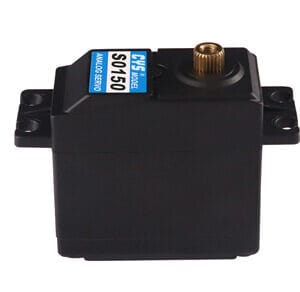

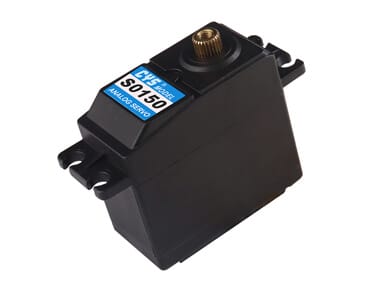

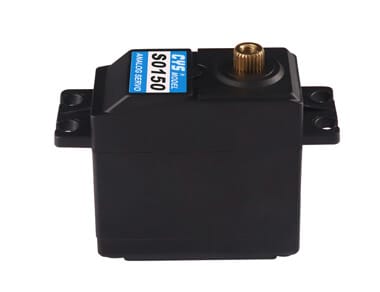

CYS 15Kg metal gear servo
R399.00
Pay over 3 EQUAL zero-interest
instalments of R133.00 with PayJustNow.
Find out how...
HOW IT WORKS
PayJustNow allows you to pay for your purchase over 3 payments with 0% interest and no fees. Pay a third at checkout and you get your goods as if you have paid in full. The remaining two instalments are debited on your specified instalment date.
Browse online or in-store and proceed to check-out
Choose PayJustNow as your payment method
Create your account and get an instant approval decision
Complete your transaction
WHAT YOU WILL NEED
BE OVER 18
YEARS OLD
BE AN SA
RESIDENT
HAVE A DEBIT OR
CREDIT CARD
HAVE A VALID
EMAIL ADDRESS
0% INTEREST. 3 PAYMENTS. NO STRESS.
WHY PAY ANY OTHER WAY?
Item NO.: CYS-S0150 15Kg standard size servo
Description : 15Kg servo motor for rc car-rc boat-rc plane
Size : 40.5*20*38MM
Torque : 14Kg.cm ~ 15Kg.cm
Speed : 0.17sec ~ 0.15sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 58± 1g
Application&Features
| Type | Analog |
|---|---|
| Weight | 58g±1g |
| Size | 40.8*20.1*38mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 6.0~7.4Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.16sec/60° at no load |
| Operating Speed (7.4V) | 0.14sec/60° at no load |
| Stall Torque (6.0V) | 14kg.cm |
| Stall Torque (7.4V) | 15kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and 200mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 300mA no load operating |
| Stall Current | 2.7A/3.2A |
| Dead Band Width | 4usec |
| Motor Type | Iron core |
| Bearing Type | ball bearing |
| Horn gear spline | 25T |
| Gear Type | Metal |
| Connector Wire Length | 300mm±5mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
